PT 401 K / W (Max 1200HP)
PTO SHAFT POWER BRAKE PT 401 K / W
When it comes to service dynamometers, the PT 401 K / W covers the complete spectrum, including all performance categories. Whether the PT 401 W (workshop version) or PT 401 K (mobile in van trailers), performance is key here.
With performance of 900 kW for the rapid test and 510 kW for a full-load curve, it can handle any engine and also achieves unrivalled precision, thanks to the inclusion of a torque measuring device in the drive train. This dynamometer provides all you need for the future. Given the ever-bigger agricultural machinery and related performance requirements, forward-looking businesses should look no further than EGGERS dynamometers.
| Technical Data | PT 401 K / W |
| Modell Versions | PT 401 W: workshop type, stationary PT 401 K: road type, based on chassis 80 km/h (optional 100 km/h) |
| Brakesystem | 3 Retarder (Eddy current brake, maintenance free) |
| Collant | Aircooled by highpower electric fan (17.000 m3/h) |
| Measurement range at 1000 min-1 and 20°C *Measurement time depending upon tractor size and local conditions | 900 kW 1 min* 825 kW 2 min* 750 kW 2,5 min* 675 kW 3,5 min* 600 kW 4,5 min* 480 kW 7,5 min* 420 kW 9 min* 330 kW 40 min* 300 kW open end |
| max. revolutions permissible max. torque | Optional 1300 1/min optional to 3600 1/min 9000 Nm |
| Precision | 0,5 % of reading |

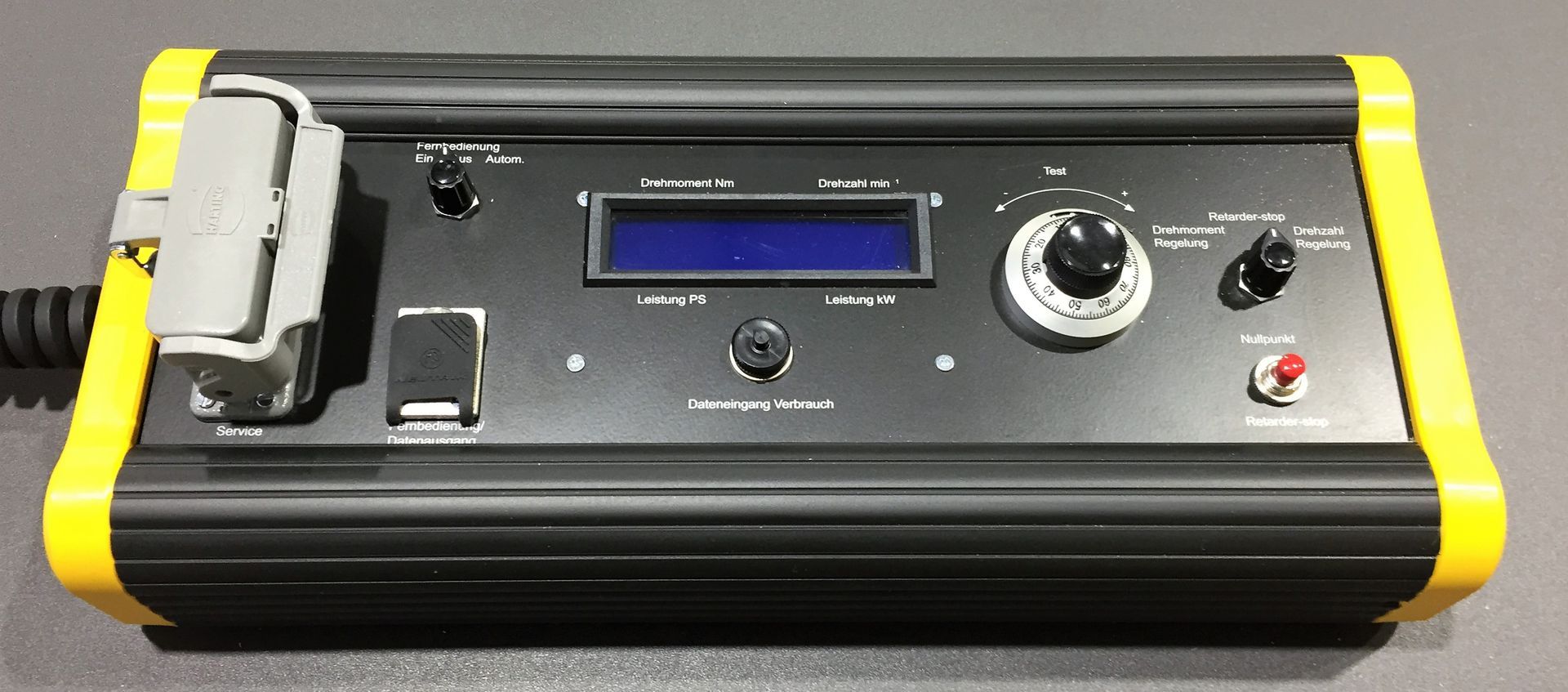

| Display | Digital display, speed, torque, power (KW, PS) |
| DMS Sensor | Measuring hub, standard temperature compensated |
| Direction of rotation | Both |
| Electrical Power Supply | 400 V, 32 A tr |
| Frame/ Housing | Galvanized / walls of multiplex |

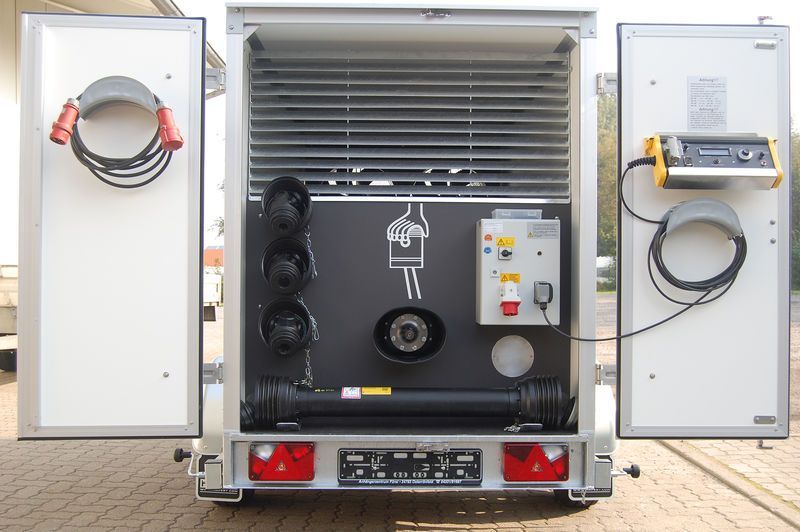

| Chassis | Tandem VIN (BPW) with auto-reverse, 2-leaf rear door, complete galvanized welded frame, folding automatic jockey, 2 grab handles, fender supports, lockable stainless steel lock, storage space for drive shaft and drive shaft halves |
| Measure and weights | PT 401 K: L 3300 mm; B 1750 mm; H 2000 mm; Weight: 2000 kg, Gross vehicle weight: 2700 kg, only construction: L 2050 mm, B 1330 mm, H 1550 mm |
| Standard delivery items | Manual, connector Standard colors: white, light grey |
| Against additional charge | Specific joint shaft 1 ¾“ 6T – 1 3/8“ PTO shaft 1 3/8“ 21T PTO shaft 1 ¾“ 20T PTO shaft 1 ¾“ 6T Software: „Eggers PowerControl“ Bluetooth or cable remote control Colors at additional cost: all RAL colors |
