PT 301 MEM / MEW / MES / K (Max 800HP)

PTO SHAFT POWER BRAKE PT 301 MEM / MEW / MES / K

Numerous available versions of the EGGERS dynamometer PT 301 allow customers to select the model optimally suited for their business. The PT 301 dynamometer is our top-seller, while the PT 301 MEW is permanently installed in a fixed location as a stationary model, e.g. in a test room.

While the PT 301 MEM model is intended for use in mobile workshops, the PT 301 MES & K can be approved for use on public roads, allowing journeys to customers or the nearest branch. With 600 kW for the rapid test and 340 kW for the full-load curve, the PT 301 covers all types of tractors released on the market to date as well as much of the harvesters.

Download technical data PDF
Technical Data PT 301 MEW / MEM / MES / K

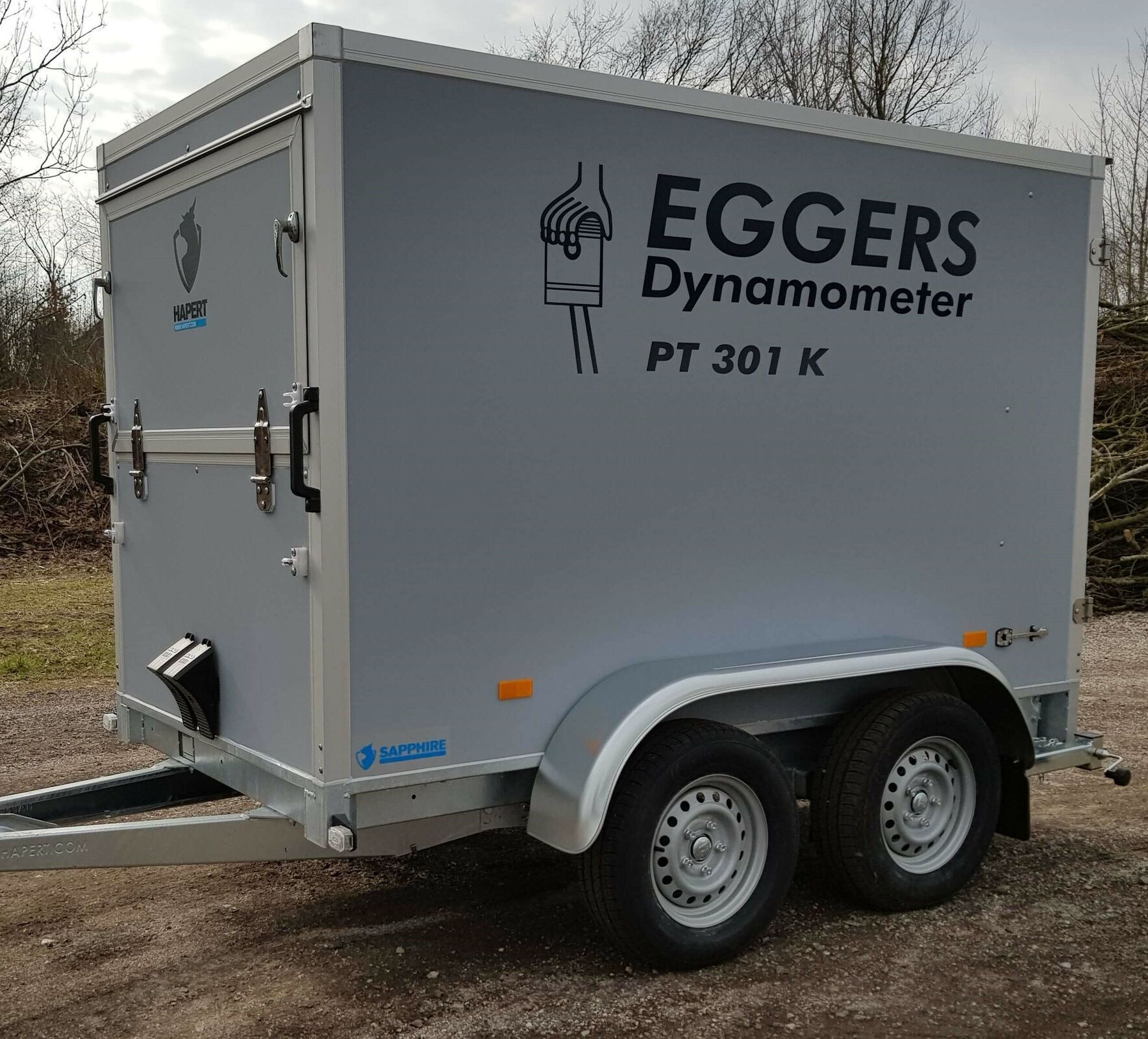

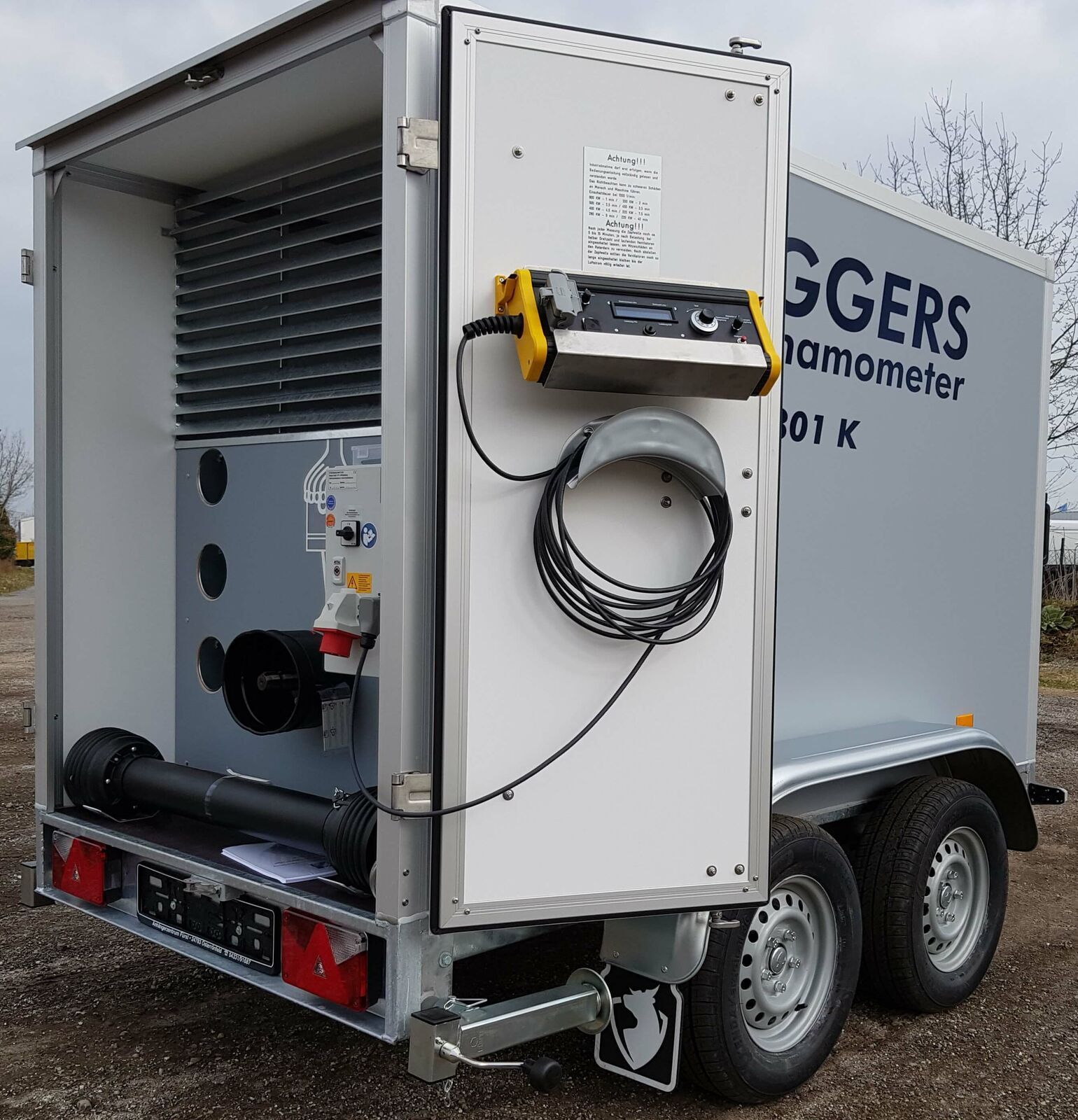

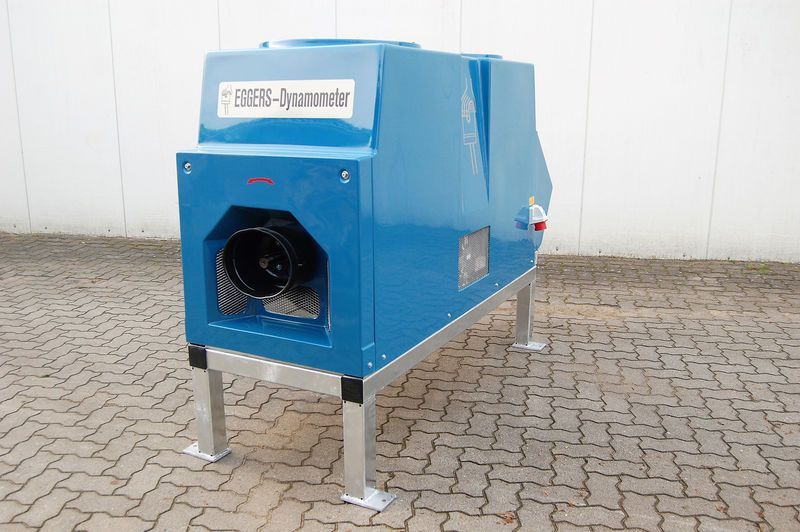

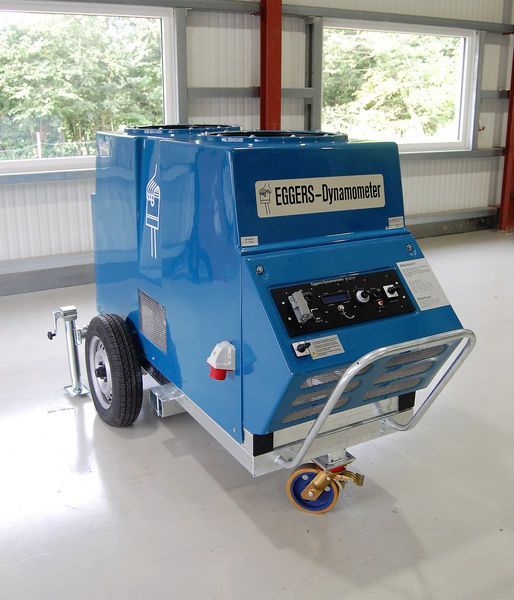

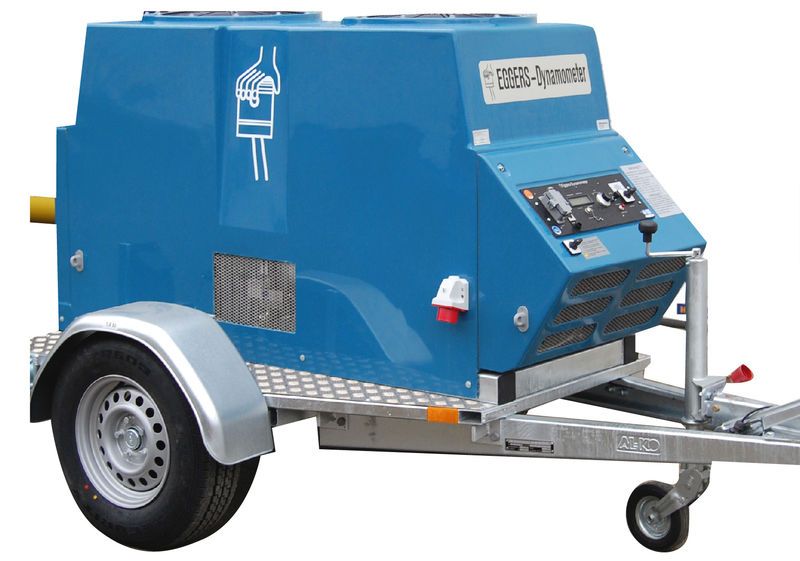

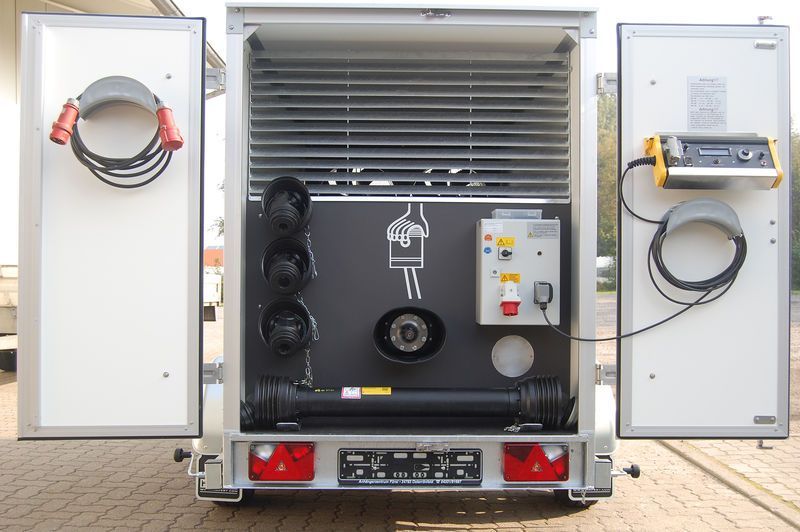

Modell versions PT 301 MEW: workshop type, fixed to floor PT 301 MEM: workshop type, mobile, mobil PT 301 MES: road type, on trailer 80 Km/h PT 301 K: Street version in the trailers
Brakesystem 2 Retarder (Eddy current brake, maintenance free)
Collant Aircooled by highpower electric fan (17.000 m3/h)
Measurement range at 1000 min-1 and 20°C *Measurement time depending upon tractor size and local conditions 600 kW 1 min* 550 kW 2 min* 500 kW 2,5 min* 450 kW 3,5 min* 400 kW 4,5 min* 320 kW 7,5 min* 280 kW 9 min* 220 kW 40 min*
max. revolutions permissible max. torque 3.600 1/min 7200 Nm
Precision <1 %

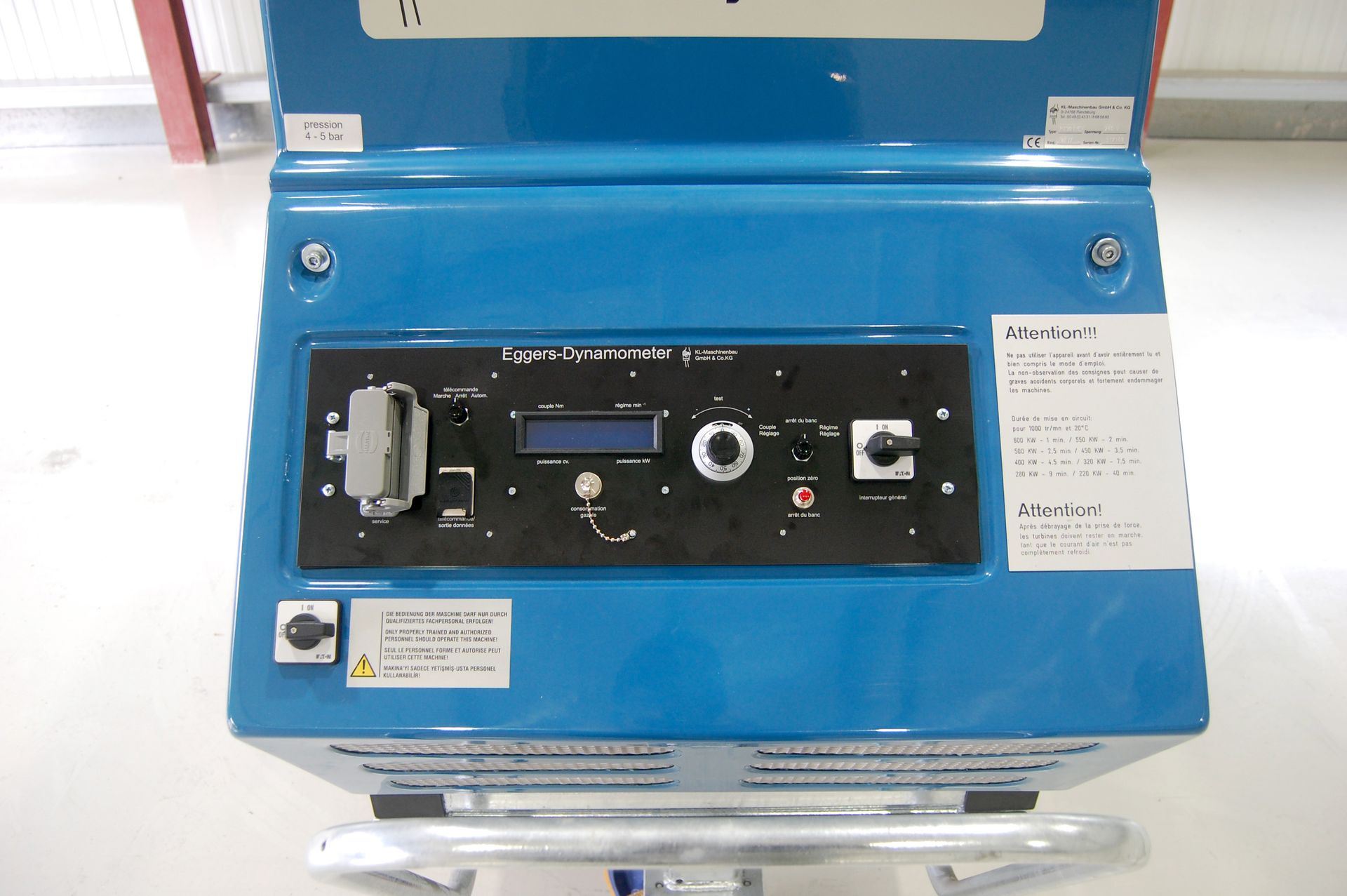

Display Digital display, indication revolutions, torque, power (KW, PS)
DMS Sensor Standard
Direction of rotation Both
Electrical Power Supply 400 V/230 V, 16A tr
Frame/ Housing Zinc plated/ Fibre glass reinforced plastics material
Measure and weights PT301MEW: L 1810 mm; B 730 mm; H 1540 mm; 1098 kg PT301MEM: L 1830 mm; B 1060 mm; H 1500 mm; 1150 kg PT301MES: L 3100 mm ; B 1800 mm; H 1580 mm; 1300 kg zul. permissible total weight 1800 kg PT301K: 1600 kg, zul. permissible total weight 2000 kg
Standard delivery items CEE plug 5x16A, and machine manual (large dust cover at 301 MES)
Against additional charge Cardan half shaft 1 3/8“ 21T Cardan half shaft 1 ¾“ 20T Cardan half shaft 1 ¾“ 6T Software: „Eggers PowerControl“ Bluetooth or cable remote control
